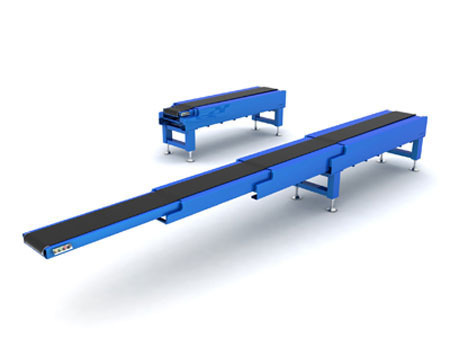

Mechwaste Private Limited manufactures Standard Hydraulic Telescopic Conveyors designed to provide efficient material movement with adjustable length and height. This system combines telescopic extension with hydraulic lifting, making it ideal for flexible loading and unloading operations in warehouses, logistics centers, and manufacturing facilities.
Product Overview
The Standard Hydraulic Telescopic Conveyor features a telescoping conveyor structure supported by a hydraulic lifting mechanism. The telescopic section allows the conveyor to extend or retract as required, while the hydraulic system enables smooth height adjustment to match dock levels, vehicle floors, or process lines. Its rugged construction ensures stable and safe operation even under continuous industrial use.
Key Features
- Telescopic extension for variable reach
- Hydraulic height adjustment for level matching
- Heavy-duty steel structure for long-term durability
- Smooth and controlled material flow
- Adjustable conveyor speed
- Ergonomic and operator-friendly design
- Low maintenance and reliable performance
Technical Specifications
- Conveyor Type: Belt type telescopic conveyor
- Telescopic Mechanism: Nested frame with guided rollers
- Lifting Mechanism: Hydraulic cylinder with electric power pack
- Belt Material: PVC / Rubber / PU (as per application)
- Belt Width: 500 mm – 1000 mm (customizable)
- Extended Length: Up to 12 meters (customizable)
- Retracted Length: As per design requirement
- Height Adjustment Range: 800 mm – 1600 mm (customizable)
- Load Capacity: Up to 50 kg per meter (higher on request)
- Speed: Variable speed (VFD controlled)
- Drive Unit: High-efficiency geared motor
- Hydraulic Power Pack: Motor-driven with pressure relief valve
- Power Supply: 415V, 3 Phase, 50 Hz
- Structure Material: Mild Steel with powder-coated / painted finish
- Controls: Push-button panel with emergency stop
Applications
- Truck and container loading/unloading
- Warehouses and distribution centers
- Logistics and e-commerce operations
- Packaging and dispatch areas
- Manufacturing and processing units
Benefits
- Faster and safer loading/unloading operations
- Reduced manual handling and labor fatigue
- Flexible operation for different vehicle sizes
- Improved ergonomics and workplace safety
- Increased productivity and throughput
Compliance & Standards
Standard Hydraulic Telescopic Conveyors from Mechwaste Private Limited are designed and manufactured in accordance with recognized industrial standards:
- ISO 9001: Quality Management System
- ISO 12100: Safety of machinery – risk assessment and reduction
- IS Standards: Applicable Indian mechanical and electrical standards
- IEC Standards: Electrical safety and motor controls
- CE Compliance: Available on request for export and international projects
Mechwaste Private Limited delivers customized Standard Hydraulic Telescopic Conveyor solutions engineered for durability, safety, and high performance in demanding material handling environments.
