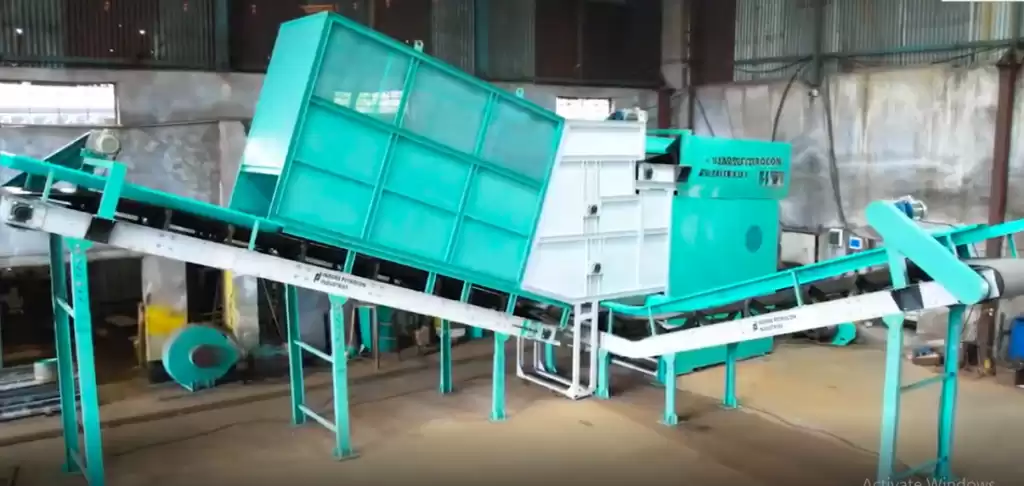

The MechWaste Air Density Separator is an advanced mechanical separation system designed to segregate mixed waste materials based on density, shape, and aerodynamic behavior using precisely controlled airflow. It is a critical component in modern recycling and waste-to-energy plants, improving material purity and downstream efficiency.
Working Principle
The Air Density Separator operates on the principle of aerodynamic drag versus gravitational force.
Mixed material is introduced into a specially designed separation chamber, where a controlled air stream is generated using a high-efficiency centrifugal fan.
- Light-density materials (plastic film, paper, textiles, wood, insulation) experience higher air resistance and are lifted or carried by the airflow.
- Heavy-density materials (stones, glass, metals, aggregates, inert waste) overcome the air force and fall naturally by gravity.
The separated fractions are discharged through independent outlets, ensuring clean and consistent separation.
Separation Physics (Technical Insight)
Each particle is influenced by:
- Gravitational force (Fg) – proportional to particle mass and density
- Drag force (Fd) – proportional to air velocity, particle surface area, and drag coefficient
When:
- Fd > Fg → particle moves with airflow (light fraction)
- Fd < Fg → particle drops (heavy fraction)
This allows effective separation even when particles are similar in size but different in density or shape.
Key System Components
1. Feed System
- Conveyor or vibratory feeder
- Ensures uniform material distribution
- Prevents overloading and turbulence
2. Separation Chamber
- Vertical or horizontal design
- Wear-resistant steel construction
- Internal baffles for flow stabilization
- Optimized geometry for maximum residence time
3. Air Generation Unit
- High-efficiency centrifugal fan
- Variable Frequency Drive (VFD) for airflow adjustment
- Enables precise control of separation cut-point
4. Light Fraction Collection
- Cyclone separator or suction duct
- Dust filtration system (bag filter / cyclone)
- Minimizes material loss and emissions
5. Heavy Fraction Discharge
- Gravity outlet with adjustable splitter
- Clean discharge of inert or recyclable material
Types of Air Density Separators
Vertical Air Density Separator
- Material falls against upward airflow
- High separation accuracy
- Suitable for plastics, paper, RDF preparation
Horizontal Air Density Separator
- Cross-flow air separation
- High throughput
- Ideal for C&D waste and aggregates
Zig-Zag / Multi-Stage Separator
- Multiple direction changes
- Enhanced separation precision
- Used where high purity is required
Technical Specifications (Typical Range)
| Parameter | Value |
|---|---|
| Processing Capacity | 5 – 80 TPH |
| Feed Size | Up to 300 mm (custom up to 1000 mm) |
| Air Velocity | 3 – 12 m/s (adjustable) |
| Fan Power | 7 – 45 kW |
| Separation Efficiency | 85 – 95% |
| Moisture Tolerance | Best < 15% |
| Control System | VFD-based airflow control |
Applications
- Municipal Solid Waste (MSW) processing
- RDF / SRF production plants
- Construction & Demolition waste recycling
- Aggregate and sand cleaning
- Plastic and paper recovery lines
- Pre-processing before optical and magnetic separators
Advantages of MechWaste Air Density Separator
✔️ High separation efficiency with consistent output
✔️ Adjustable cut-point for different materials
✔️ No water or chemicals required
✔️ Low operating and maintenance cost
✔️ Robust design for harsh waste conditions
✔️ Easy integration into existing plants
Role in Complete Waste Processing Lines
The Air Density Separator is typically installed:
- After shredding
- Before or after screening
- Ahead of magnetic, eddy current, or optical separators
This improves overall plant performance and protects downstream equipment.
Conclusion
The MechWaste Air Density Separator is a proven, energy-efficient solution for density-based material separation. By using controlled airflow and optimized chamber design, it significantly enhances material recovery, reduces contamination, and supports sustainable waste management practices.
